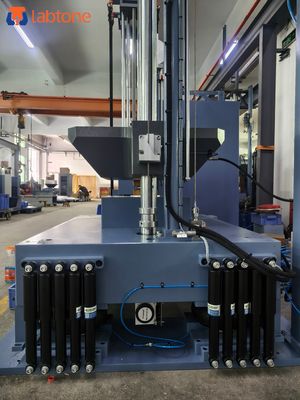

SKT Series Shock Test System for Unpackaged Products with Half-Sine Saw-Tooth and Trapezoid Waveforms

SKT Series Shock Test System for Unpackaged Products with Half-Sine Saw-Tooth and Trapezoid Waveforms
SKT Series Shock Test System for Unpackaged Products with Half-Sine Saw-Tooth and Trapezoid Waveforms SKT Series Shock Test System for Unpackaged Products with Half-Sine Saw-Tooth and Trapezoid Waveforms SKT Series Shock Test System for Unpackaged Products with Half-Sine Saw-Tooth and Trapezoid Waveforms SKT Series Shock Test System for Unpackaged Products with Half-Sine Saw-Tooth and Trapezoid Waveforms

Большие изображения :  SKT Series Shock Test System for Unpackaged Products with Half-Sine Saw-Tooth and Trapezoid Waveforms

Подробная информация о продукте:
Место происхождения: Китай
Фирменное наименование: LABTONE
Сертификация: CE, ISO
Номер модели: SKT100
Оплата и доставка Условия:
Количество мин заказа: 1 комплект
Цена: to be discussed
Упаковывая детали: Международное фанеровое чехло
Время доставки: 45 рабочих дней
Условия оплаты: Т/Т
Поставка способности: 15 комплектов / месяц

SKT Series Shock Test System for Unpackaged Products with Half-Sine Saw-Tooth and Trapezoid Waveforms

описание
Размер таблицы: 50 x 60 см Максимальный вес образца: 100 кг
ИМП ульс удара: Половина синуса, зуб, трапециальный импульс Гарантийный период: через 1 год после установки
Источник питания: 3-фазный AC 380V 50Hz
Выделить:

SKT Series shock test system

,

shock test system for unpackaged products

,

half-sine saw-tooth shock tester



PC Programmed Shock Test Equipment With Half-Sine, Saw-Tooth, Trapezoid Shock Pulse



UN_38.3 Lithium Battery Test Standard.pdf





Product description

Consumer product in its life cycle in two cases will be subjected to impact. One is the impact caused by collisions and jumps caused by vehicles walking on uphill roads or when people fall on the ground during transportation. Hand-held products (such as mobile phones) are more harmful to the product from the impact of falling without cushion protection. In the product design stage, the mechanical test can quickly verify the structural strength level, or determine whether the packaging material has an appropriate cushioning effect. The severity of the test depends on the waveform, G value, pulse time, and number of shocks.

In our daily life, the most frequently encountered shock waveforms are half sine, trapezoid and sawtooth waves. The test is mainly based on unpackaged products. Generally, three axes with six sides and three shocks per side are the main test requirements.




Technical Specifications



Model SKT50 SKT100 SKT200 SKT300 SKT500 SKT1000 SKT1500
Table size (cm) 40 x 40 50 x 60 70 x 80 100 x 100 120 x 120 150 x 150 200 x 200
Maximum Specimen Weight(Kg) 50 100 200 300 500 1000 1500
Max acceleration(G) half sine 600 600 600 500 500 300 300
saw-tooth waveform 100 100 100 100 100 100 100
square 100 100 100 60 50 50 50
Pulse Duration (ms) half sine 30~1 30~2 30~2 20~3 20~3 20~3 20~3
saw-tooth waveform 18~6 18~6 18~6 18~6 18~6 18~6 18~6
square 12~6 12~6 12~6 12~6 12~6 12~6 12~6
Machine Dimension(cm) 82x90x195 120x105x245 130x120x260 150x130x260 200x160x300 230x180x310 250x250x310
Controller cabinet Dimension(cm) W55 x D50 x H80
Machine Weight(Kg) 1050 2000 3200 4200 8500 15500 21500
Utility 3-phase AC380V 50/60Hz 0.5~0.8MPa
Requirements
Conforming standards GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL







Warranty: 12 months from delivery, lifelong time maintainance.

After-sale service: feedback within 4-8 hours after get the call or email.

Service: OEM, ODM



Certificate: China official third-party calibration report / CE Certification





Customer Service



Service timeliness



When a fault report is received from customer〈including telephone, fax and email〉:

LABTONE will respond within 4-8 hours (working time), provide solutions and eliminate faults within 12-24 hours. After the equipment's guarantee period ended, supplier still has obligation to provide users with technical supports and after-sales services.



Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run
  • Calibration (when Third Party’s verification is required)



After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.
