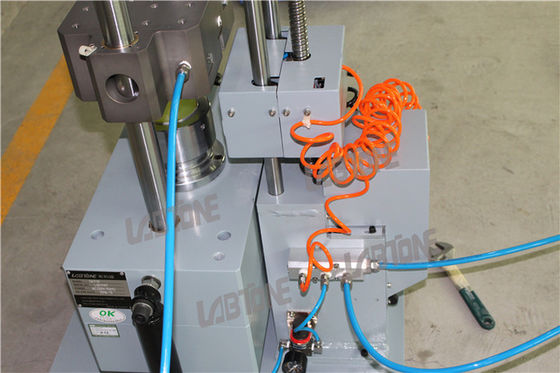

Half Sine Shock Test System Electro Shock Machine For Lithium Battery Safety Testing and Dynamic Testing for Different Test Item Sizes

Considerations When Selecting Shock Equipment

We ultimately recommend the most suitable system configuration for every testing application based on two important criteria:

• The size of your largest test item
• The performance capability needed to meet your testing needs

Test Item Size

Each customer has unique requirements for their dynamic testing equipment. It is important to know the size and weight of test items to correctly configure the appropriate testing equipment. The size of your largest test item will help determine the table surface area. The maximum payload will help determine the shock system performance category.

Performance Capability

Shock testing levels vary significantly depending on the product you are evaluating or the conditions you are simulating. The two most important shock performance criteria are velocity change and acceleration level. It is also important to know the shock pulse waveforms—half sine, sawtooth, or trapezoidal.

Specification

The precise-type high-acceleration shock tester can provide all half-sine short wave specification specified in JESD22-B110. To meet them, merely change different shock rubber-pad on shock seat. The wave is complete with high repeatability, able to provide user accurate test result.
Conform to different test specs such as JESD22-B110 and IEC spec.

• TouchTest Shock 2 Controller for easy and safe operation
• Forged aluminum table design for generating high acceleration shock pulses
• Acceleration Kit to increase velocity change performance
• Electric hoist lifting and positioning system enables precise drop repeatability
• Floating Seismic Base to limit the shock energy that transmits to the floor
• Full range of applications training programs available
• Worldwide Customer Service department

 Customer Services

Presales:

· Technical consultation: test method, laboratory planning and suggestion.

· Equipment selection: selection scheme, FAQ.

· Product testing scheme.

In-Sales:

· Customer communication and progress report.

· Guidance for pre-installation preparation, equipment commissioning and test run.

· Calibration (when Third Party’s verification is required).

After-Sales:

· Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

· Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

· Technical support: special paid services are provided according to customer’s needs.
